Shingle Roof Flashings
Purpose made and high quality roof flashing solutions for shingle roof applications. With the Dektite Shingle Roof Flashing range, you’ll be able to flash almost any pipe penetration through a Shingle roof.
Choose from a Dektite 5N1 for a quick watertight solution for pipe OD sizes of 1 ¼” to 4”, or Dektite SHR for Electrical Service Masts when reroofing.

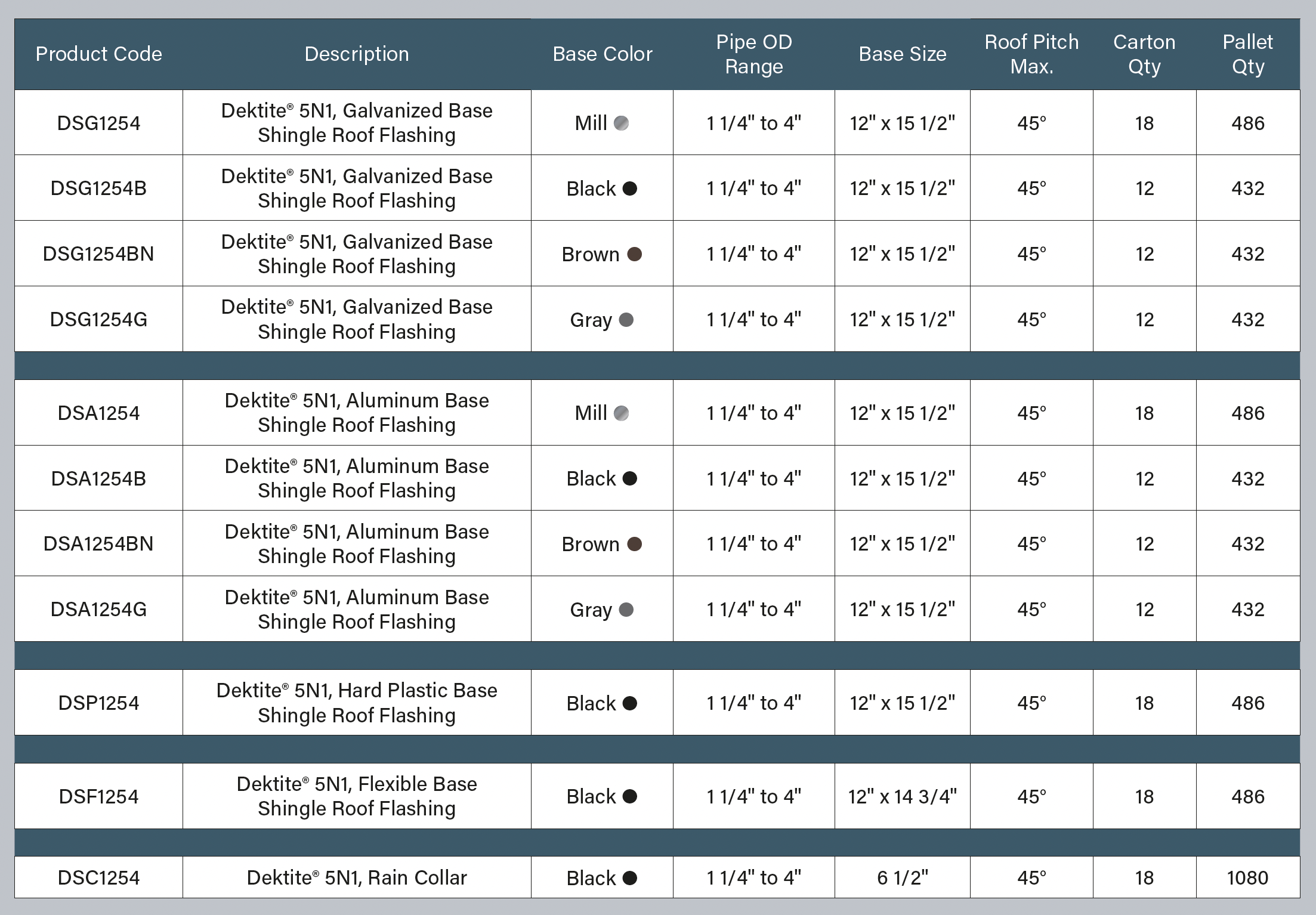

Dektite 5N1 (one size fits multiple pipe OD’s)

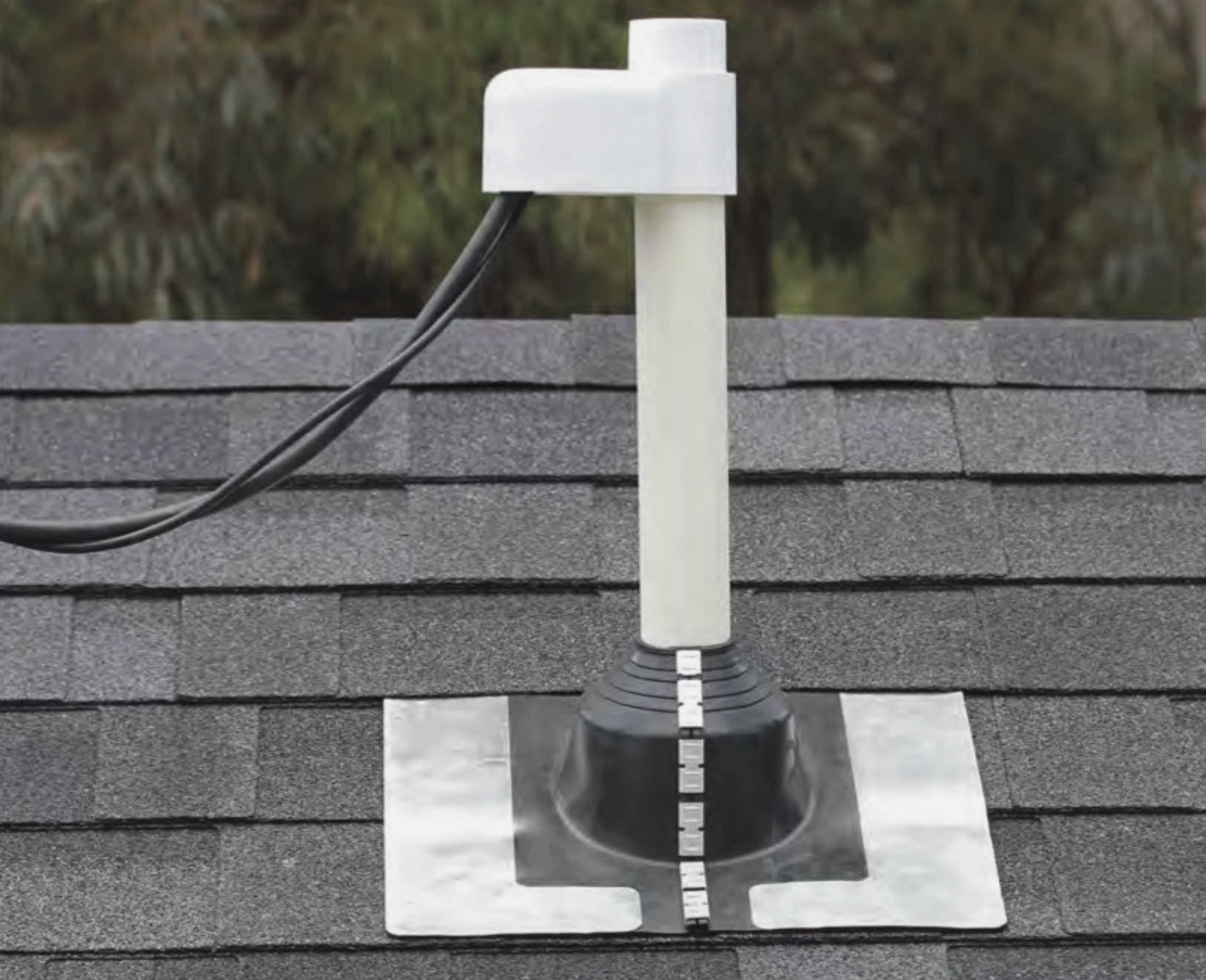

Dektite SHR
(Electrical Service Masts)
Featuring a pipe OD range of 0-5”, a 15” x 15” base and a retrofit design, the Dektite SHR is a great solution for flashing over or around penetrations through a shingle roof. Available in black and made from proprietary polymer materials to be fully compatible with asphalt shingles. Easily slide down the pipe without cutting, or cut along the zipper & use the clips supplied. The aluminum flange nails securely down to the roof.
Approved for use with USA/Canadian galvanised pipe application.
| Pipe External | Base Size | Code |
|---|---|---|
| 0-5" | 15 x 15" | DSR103B |
