Dektite Metal Roof Flashings
Purpose made and high quality roof flashing solutions for metal roof applications. With the Dektite Metal Roof Flashing range, you’ll be able to flash almost any pipe penetration through a metal roof or wall. This range can also be used to seal penetrations through glass or plastic roofs. Choose from a Dektite Original or Premium for a quick watertight solution, a Dektite Combo or Dektite Retrofit if you need a wrap around solution, Dekstrip if you need to flash awkward or large penetration and many other flashings for a strong water tight seal.

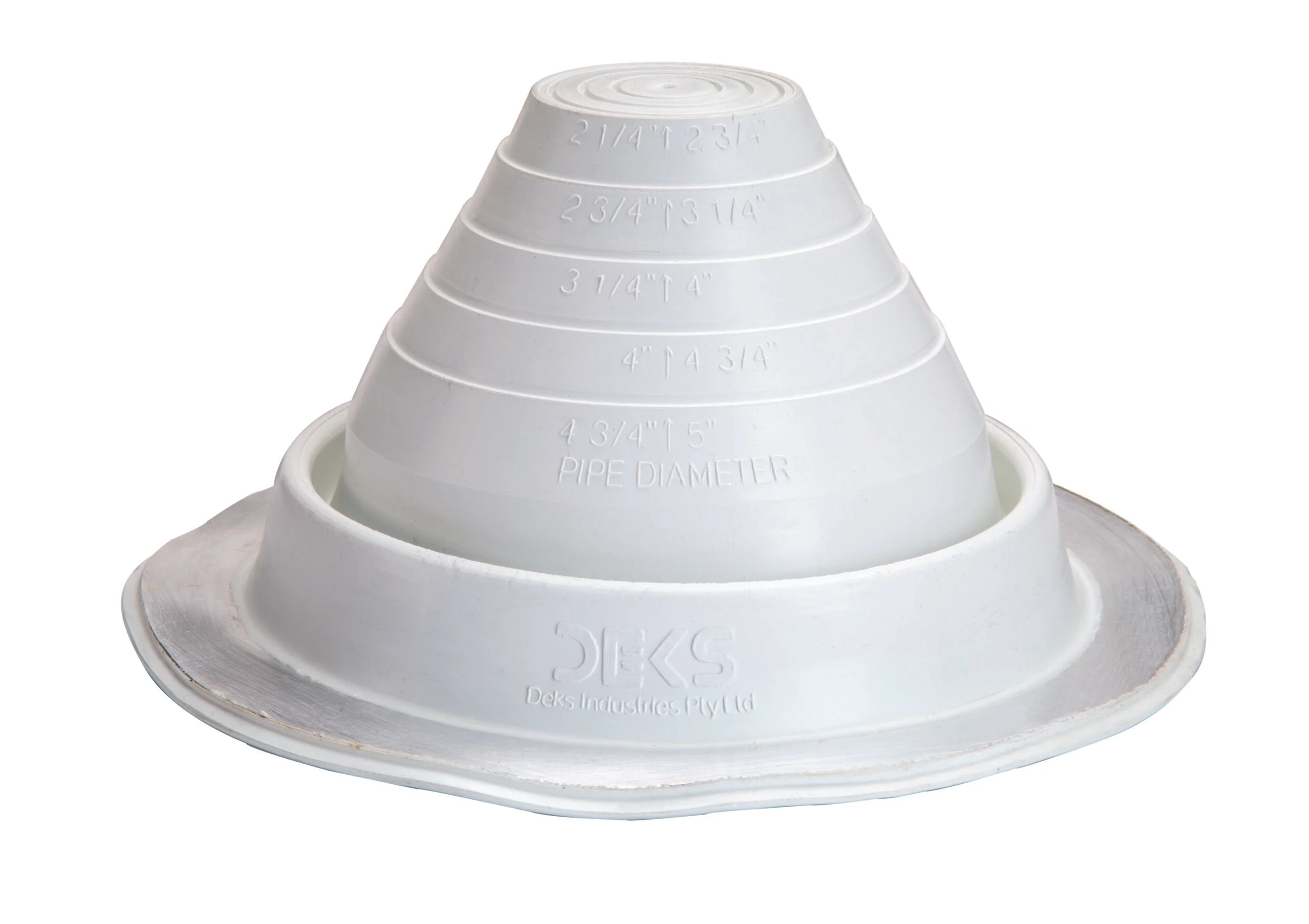

Dektite Original
The original watertight flashing from metal roofs
The original Dektite designed to seal both hot and cold flues and pipes on metal roofs. A strong watertight seal and a strong flexible base featuring a flexible aluminium band.
| Pipe External (inches) | Pipe External | Roof Pitch | Black EPDM | Gray EPDM | Red Silicone | Gray Silicone |
|---|---|---|---|---|---|---|
| 0-0.375" | 0-35mm | 0-45° | DF100B | DF100G | ||
| 0.25-2.5" | 5-60mm | 0-40° | DF101B | DF101G | DF201RE | |
| 1.75-3.25" | 45-80mm | 0-40° | DF102B | DF102G | DF202RE | |
| 0.25-5" | 5-127mm | 0-40° | DF103B | DF103G | DF203RE | DF203G |
| 3-6.25" | 75-160mm | 0-40° | DF104B | DF104G | DF204RE | DF204G |
| 4.25-7.5" | 108-190mm | 0-40° | DF105B | DF105G | DF205RE | DF205G |
| 5-9" | 125-230mm | 0-40° | DF106B | DF106G | DF206RE | DF206G |
| 6-11" | 150-280mm | 0-40° | DF107B | DF107G | DF207RE | DF207G |
| 7-13" | 175-330mm | 0-40° | DF108B | DF108G | DF208RE | DF208G |
| 10-19" | 254-483mm | 0-40° | DF109B | DF109G | DF209RE | DF209G |

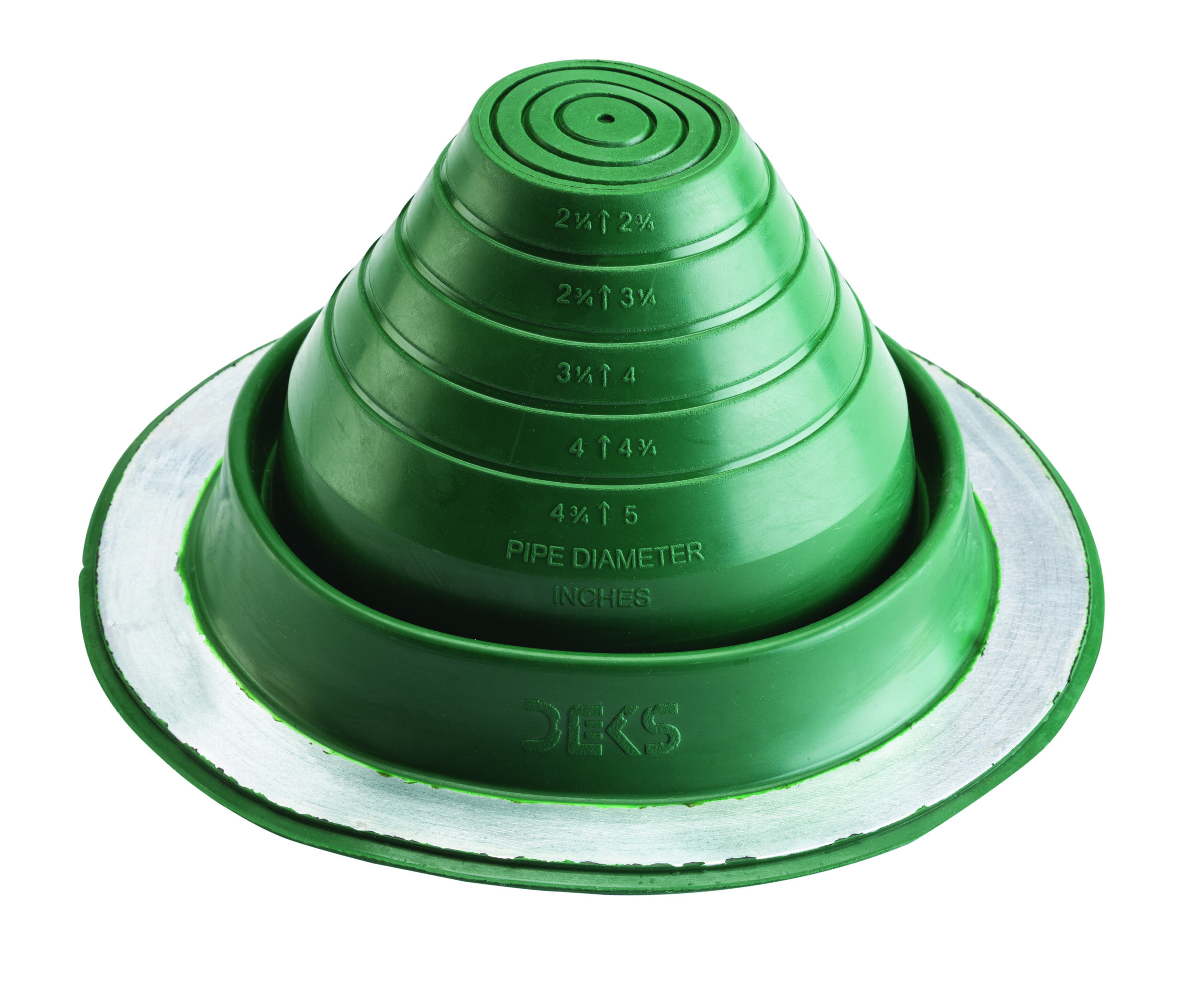

Dektite Original Colored
| Pipe External (inches) | Pipe External | Roof Pitch | Color EPDM | Part Number |
|---|---|---|---|---|
| 0.25-5" | 5-127mm | 0-40 | Brown | DF103BN |
| 0.25-5" | 5-127mm | 0-40 | Bright Red | DF103BR |
| 0.25-5" | 5-127mm | 0-40 | Dark Blue | DF103DB |
| 0.25-5" | 5-127mm | 0-40 | Dark Green | DF103DG |
| 0.25-5" | 5-127mm | 0-40 | Light Blue | DF103LB |
| 0.25-5" | 5-127mm | 0-40 | Light Green | DF103LG |
| 0.25-5" | 5-127mm | 0-40 | Terracotta | DF103TC |
| 0.25-5" | 5-127mm | 0-40 | White | DF103WH |
| 4.25-7.5" | 108-190mm | 0-40 | Brown | DF105BN |
| 4.25-7.5" | 108-190mm | 0-40 | Bright Red | DF105BR |
| 4.25-7.5" | 108-190mm | 0-40 | Dark Blue | DF105DB |
| 4.25-7.5" | 108-190mm | 0-40 | Dark Green | DF105DG |
| 4.25-7.5" | 108-190mm | 0-40 | Light Blue | DF105LB |
| 4.25-7.5" | 108-190mm | 0-40 | Light Green | DF105LG |
| 4.25-7.5" | 108-190mm | 0-40 | Terracotta | DF105TC |
| 4.25-7.5" | 108-190mm | 0-40 | White | DF105WH |
| 7-13" | 175-330mm | 0-40 | Brown | DF108BN |
| 7-13" | 175-330mm | 0-40 | Bright Red | DF108BR |
| 7-13" | 175-330mm | 0-40 | Dark Blue | DF108DB |
| 7-13" | 175-330mm | 0-40 | Dark Green | DF108DG |
| 7-13" | 175-330mm | 0-40 | Light Blue | DF108LB |
| 7-13" | 175-330mm | 0-40 | Light Green | DF108LG |
| 7-13" | 175-330mm | 0-40 | Terracotta | DF108TC |
| 7-13" | 175-330mm | 0-40 | White | DF108WH |
Dektite Premium
Perfect for flashings pipes on metal roofs
The multi-application flashings with a highly durable EPDM cone and base, edged with a flexible aluminium strip. Perfectly suited to flash hot or cold flues on metal roofs. The square base fits any prepared hot on metal roof profiles.
| Pipe External (inches) | Pipe External | Base Size | Roof Pitch | Black EPDM | Gray EPDM | Red Silicone | ||
|---|---|---|---|---|---|---|---|---|
| 0-1.5" | 0-35mm | 100 x 100mm | 4 x 4" | 0-60° | 18/12 | DFE100B | DFE100G | DFE200RE |
| 0.25-2.25" | 5-55mm | 139 x 139mm | 5 1/2" x 5 1/2" | 0-45° | 12/12 | DFE101B | DFE101G | DFE201RE |
| 0.25-3'' | 5-76mm | 178 x 178mm | 7 x 7 " | 0-45° | 12/12 | DFE102B | DFE102G | DFE202RE |
| 0.25-5'' | 5-127mm | 221 x 221mm | 8.75 x 8.75 " | 0-45° | 12/12 | DFE103B | DFE103G | DFE203RE |
| 3-7'' | 75-175mm | 280 x 280mm | 11 x 11 " | 0-45° | 12/12 | DFE104B | DFE104G | DFE204RE |
| 4-8'' | 100-200mm | 310 x 310mm | 12.25 x 12.25 " | 0-45° | 12/12 | DFE105B | DFE105G | DFE205RE |
| 5-9'' | 125-230mm | 363 x 363mm | 14.25 x 14.25 " | 0-45° | 12/12 | DFE106B | DFE106G | DFE206RE |
| 6-12'' | 150-300mm | 456 x 456mm | 18 x 18 " | 0-45° | 12/12 | DFE107B | DFE107G | DFE207RE |
| 6.75-14" | 170-355mm | 496 x 496mm | 19.5 x 19.5 " | 0-45° | 12/12 | DFE108B | DFE108G | DFE208RE |
| 9-20'' | 230-508mm | 681 x 681mm | 26 x 26 " | 0-45° | 12/12 | DFE109B | DFE109G | DFE209RE |

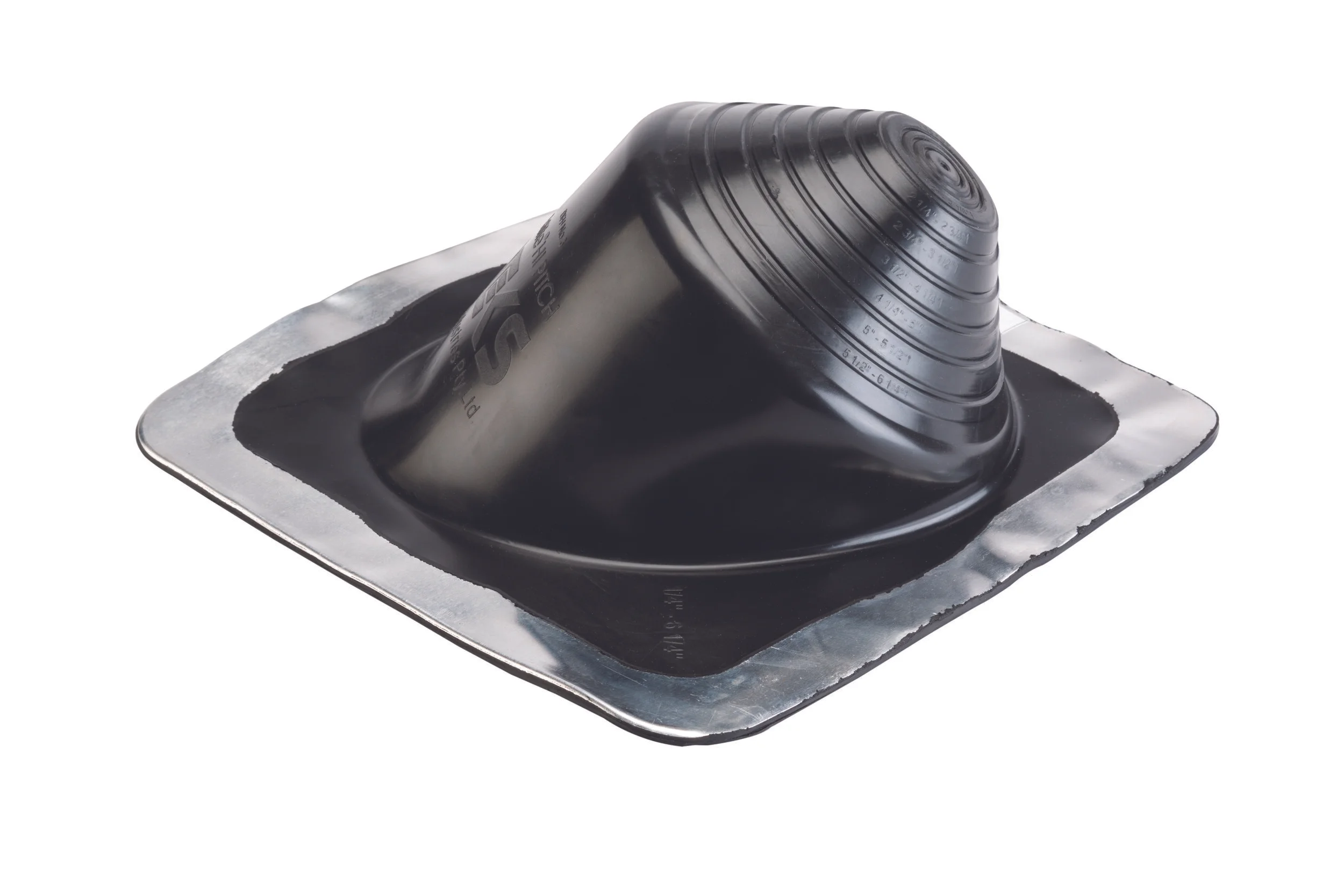

Dektite High Pitch
Steep slope metal roof flexible flashing.
Built in 40 degree pitch design provides a water tight seal on metal roof pitches from 35 to 65 degrees.
| Pipe External (inches) | Pipe External | Roof Pitch | Black EPDM | Red Silicone |
|---|---|---|---|---|
| 0-6" | 0-159mm | 35-65 | DFH103B | DFH203RE |
Dektite Combo
Flash over and around
A standard Dektite and Retrofit all in one. Clips included.
| Pipe External (inches) | Pipe External | Base Size | Roof Pitch | Black EPDM | Gray EPDM | Red Silicone | ||
|---|---|---|---|---|---|---|---|---|
| 0.25-2.5" | 5-60mm | 139 x 139mm | 3 1/2 x 3 1/2 " | 0-45° | 12/12 | DC101BC | DC101GC | DC201REC |
| 1.75-3.25" | 45-85mm | 179 x 179mm | 7 x 7 " | 0-45° | 12/12 | DC102BC | DC102GC | DC202REC |
| 0.25-5" | 5-127mm | 216 x 216mm | 8 1/2 x 8 1/2 " | 0-45° | 12/12 | DC103BC | DC103GC | DC203REC |
| 3-7" | 75-175mm | 285 x 285mm | 11 1/4 x 11 1/4 " | 0-45° | 12/12 | DC104BC | DC104GC | DC204REC |
| 4.25-7.5" | 108-190mm | 366 x 366mm | 14 1/2 x 14 1/2 " | 0-45° | 12/12 | DC105BC | DC105GC | DC205REC |
| 5-9" | 125-230mm | 366 x 366mm | 14 1/2 x 14 1/2 " | 0-45° | 12/12 | DC106BC | DC106GC | DC206REC |
| 6-11" | 150-280mm | 454 x 454mm | 17 1/4 x 17 1/4 " | 0-45° | 12/12 | DC107BC | DC107GC | DC207REC |
| 7-13" | 175-330mm | 454 x 454mm | 17 1/4 x 17 1/4 " | 0-45° | 12/12 | DC108BC | DC108GC | DC208REC |
| 9.5-20" | 240-508mm | 685 x 685mm | 27 x 27 " | 0-45° | 12/12 | DC109BC | DC109GC | DC209REC |
| 13 3/4-30" | 350-760mm | 995 x 965mm | 38 1/2 x 38" | DC110BC | DC210REC |
Dektite Ezi-Seal
Forget Silicone, just screw it down
Features a revolutionary non-absorbent and non-porous sponge gasket that seals by compression even in wet conditions. It hugs the roof line to provide a watertight seal without the need for silicone sealant.
| Pipe External (inches) | Pipe External | Base Size | Roof Pitch | Black EPDM | ||
|---|---|---|---|---|---|---|
| 0-1.5" | 0-35mm | 100 x 100mm | 4 x 4" | 0-60° | 18/12 | DFE100BEZ |
| 0.25-2.25" | 5-55mm | 139 x 139mm | 5 1/2" x 5 1/2" | 0-45° | 12/12 | DFE101BEZ |
| 0.25-3'' | 5-76mm | 178 x 178mm | 7 x 7 " | 0-45° | 12/12 | DFE102BEZ |
| 2 - 2 3/4" | 50-70mm | 178 x 178mm | 7 x 7 " | 0-45° | 12/12 | DFE102BAEZ |
| 0.25-5'' | 5-127mm | 221 x 221mm | 8.75 x 8.75 " | 0-45° | 12/12 | DFE103BEZ |
| 3-7'' | 75-175mm | 280 x 280mm | 11 x 11 " | 0-45° | 12/12 | DFE104BEZ |
| 4-8'' | 100-200mm | 310 x 310mm | 12 1/4 x 12 1/4 " | 0-45° | 12/12 | DFE105BEZ |
| 5-9'' | 125-230mm | 363 x 363mm | 14 1/4 x 14 1/4 " | 0-45° | 12/12 | DFE106BEZ |
| 6-12'' | 150-300mm | 456 x 456mm | 18 x 18 " | 0-45° | 12/12 | DFE107BEZ |
| 6.75-14" | 170-355mm | 496 x 496mm | 19 1/2 x 19 1/2 " | 0-45° | 12/12 | DFE108BEZ |
| 9-20'' | 230-508mm | 681 x 681mm | 23 x 23 " | 0-45° | 12/12 | DFE109BEZ |
Dektite Soaker - Diverter
For hi/low roof pitches
The large base of a Dektite Soaker dramatically reduces rainwater back up on very low or very high roof pitches and deep ribbed roofing profiles.
| Pipe External (inches) | Pipe External | Base Size | Roof Pitch | Gray EPDM | Red Silicone | ||
|---|---|---|---|---|---|---|---|
| 3-6" | 75-155mm | 410 x 360mm | 16 x 14" | 0-60° | 18/12 | DF602 | DF702 |
| 4.5-10" | 114-254mm | 485 x 460mm | 19 x 18" | 0-60° | 18/12 | DF603 | DF703 |
| 10-16" | 254-406mm | 708 x 640mm | 27 3/4 x 25" | 0-60° | 18/12 | DF605 | DF705 |
| 15-24" | 380-610mm | 1415 x 905mm | 39 1/4 x 35 1/2" | 0-60° | 18/12 | DF606 | DF706 |
| 9.25-16.75" | 235-425mm | 762 x 680mm | 39 3/4 x 35 1/2" | 0-60° | 18/12 | RFS4 | RFS24 |

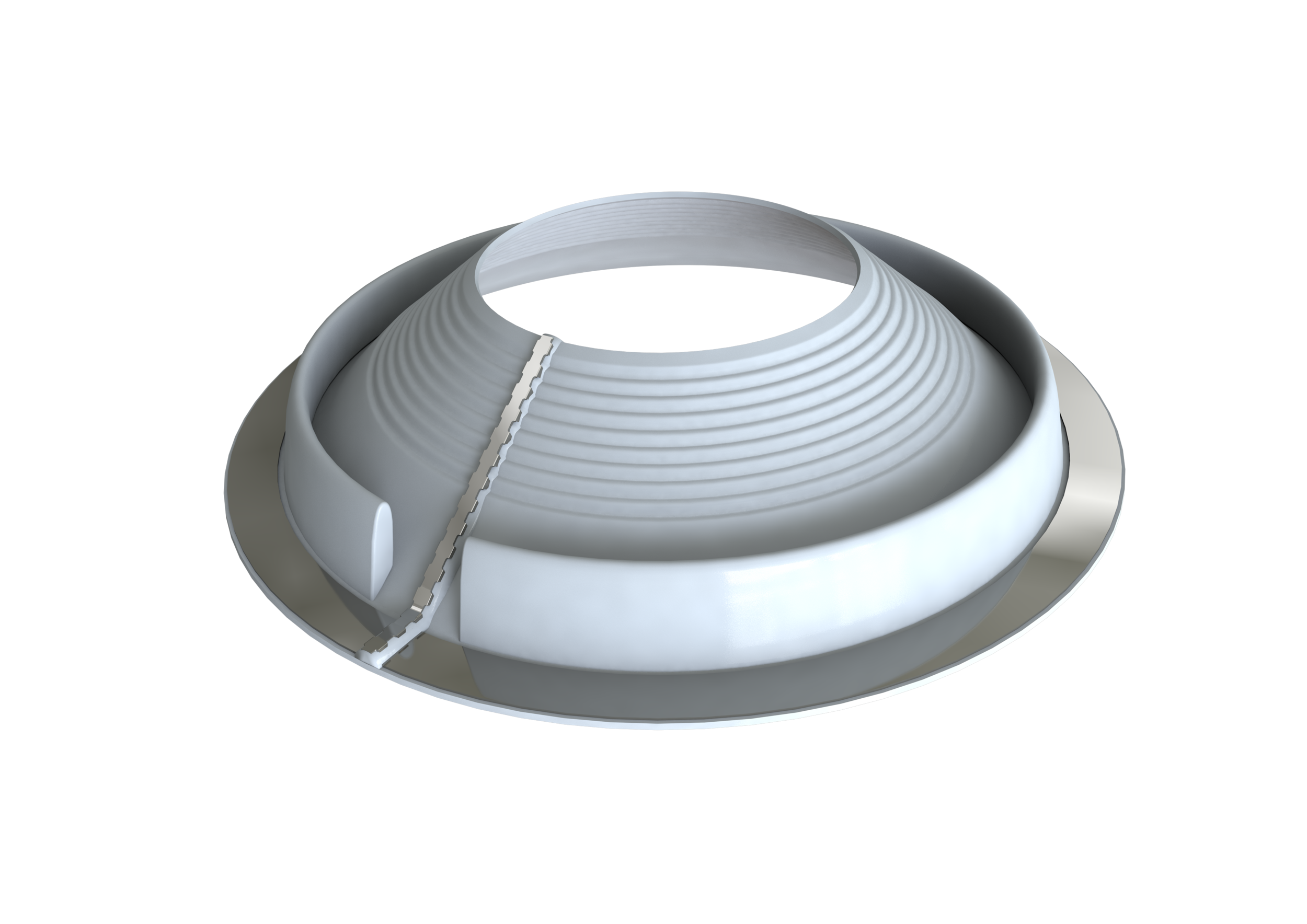

Retrofit Original
For repairs & difficult to access pipes
Most commonly used when flashings around an existing penetration when going over the top of the pipe material in not the option. The unique patented zip lock does not required separate clips - just clamp it together.
| Pipe External (inches) | Pipe External | Base Size | Roof Pitch | Black EPDM | Gray EPDM | Red Silicone | ||
|---|---|---|---|---|---|---|---|---|
| 0.75-2.75" | 20-70mm | 160mm | 6 1/2" | 0-45° | 12/12 | RF801B | RF801G | RF901RE |
| 2-7.25" | 50-185mm | 273mm | 10 3/4" | 0-45° | 12/12 | RF802B | RF802G | RF902RE |
| 3.25-10" | 85-255mm | 369mm | 14 1/2" | 0-45° | 12/12 | RF803B | RF803G | RF903RE |

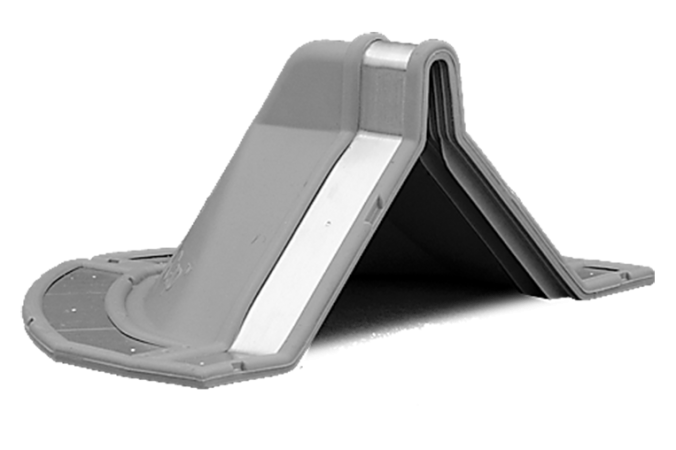

Dektite UEC
Universal Trapezoidal SSR end cap
The Dektite - UEC is made of TPE and has a continuous temperature of -104°F to 250°F.
The clever universal design allows use on left and right handed seams. The Flexible, corrosion resistant aluminium base conforms to the majority of standing seam roof panels. Pre-formed panel profile shape is designed to reduce installation time. Fastening locations are clearly indicated for accurate installation. Dual underside ridges provide maximum sealing protection. Expansion notch provides added installation position. Interior panel stop ensures correct installation position. Thermal elastomer material provides excellent resistance to ozone, ultra-violet light and extreme temperatures.
| DEKS Code | Application | Box Qty |
|---|---|---|
| DEKTITE-UEC | Metal Curbs, Skylights, Ridge Applications, Jobsite Retrofit | 10 |
